Reading & Processing Digitizer Data Files

Format Specifications

Detailed specifications for the file formats supported by FemtoDAQ digitizer line are documented below. Each of these formats can be read into numpy arrays using skutils Loader objects.

Loading Digitizer Data Files

Loaders allows for quick and easy reading of FemtoDAQ digitizer data files. These Loaders are designed with the idea of fast, common interfaces for various file formats, to allow for easy and fast development no matter the file format used.

Loaders can return two data structures:

1. EventInfo structures which aggregate data from multiple channels within a pre-defined timestamp window.

2. ChannelData which contains metadata and/or waveform data from a single channel

Downloading Data from a FemtoDAQ Digitizer

Immediately following a data collection run, you can using skutils.FemtoDAQController.downloadLastRunDataFiles() to download all data files that were generated during that run.

import skutils
digitizer = skutils.FemtoDAQController("url_or_ip_address")

last_run_data_files = digitizer.downloadLastRunDataFiles()

Loading Data from Files

Quick Loading

For most applications, skutils.quickLoad provides the easiest way to load data in for analysis. skutils.quickLoad automatically uses the correct type of Loader object for the type of data file and return each EventInfo as they were saved by your device.

event_count = 0
for event in skutils.quickLoad(last_run_files):
    timestamp = event.timestamp
    waveforms = event.wavedata()

    print(f"Timestamp for this event is {timestamp}")
    event_count += 1

Explicit Loading

In cases where you need to re-build Events or use advanced loading features, you can instantiate a Loader Object. skutils provides tools to load each of the supported data types Data Formats.

The following block assumes you are working with EventCSV data files

for fname in last_run_data_files:
    # create the loader for this file
    loader = skutils.EventCSVLoader(fname)

    for event in loader:
        timestamp = event.min_timestamp
        waves = event.wavedata()
        pulse_heights = event.pulse_heights
        # do processing...

Working with Event Data

The following examples assume you will have an EventInfo instantiated using a tool such as skutils.quickLoad

Each EventInfo object contains data from multiple channels. Depending on the format, this allows you to access timestamps, pulse_heights and other DSP quantities

Iterating through channels in an Event

for ch_data in event.channel_data:
   channel = ch_data.channel

Waveform Data

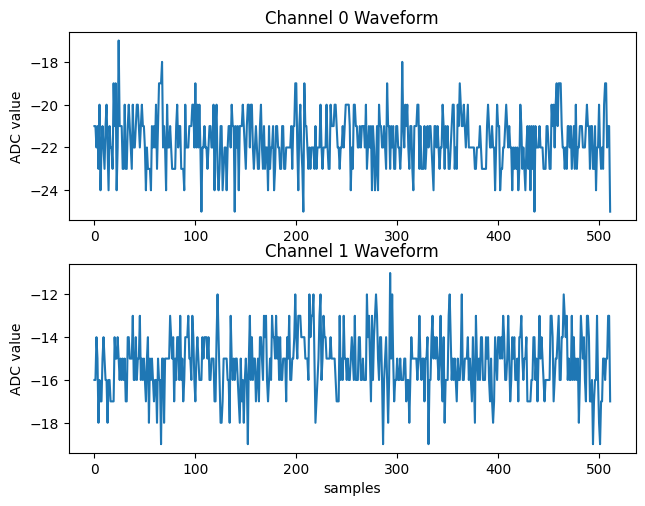

Waveform data for an event can be grabbed with wavedata(). This returns a numpy array where rows are waveform samples, and columns are the channels.

Attention

Some events may not contain waveforms - depending on your recording configuration. In these cases has_waves should be checked before you attempt to grab waveforms that don’t exist.

channels = event.channels
if event.has_waves:
   waveforms = event.wavedata()

   print(f"This event contains waveform data for channels: {channels}. Each wave has {waveforms.shape[0]} samples")

Rebuilding Events

By default Events are build
